Can DUILIO FPV run without DUILIO F4?

Yes. A baseline deployment can run on Raspberry Pi. DUILIO F4 is used when you need advanced safety and machine-level control features.

When should I add DUILIO F4?

Add DUILIO F4 when your project requires stronger failsafe behavior, richer I/O and robust real-time motion control.

DUILIO FPV

Real-time remote control for vehicles and machines, designed for low latency operation over Wi-Fi and 4G/5G networks.

At a glance

Topic	Summary
Latency	Real-time remote control designed for ultra-low delay operation.
Connectivity	Wi-Fi mesh and 4G/5G network support.

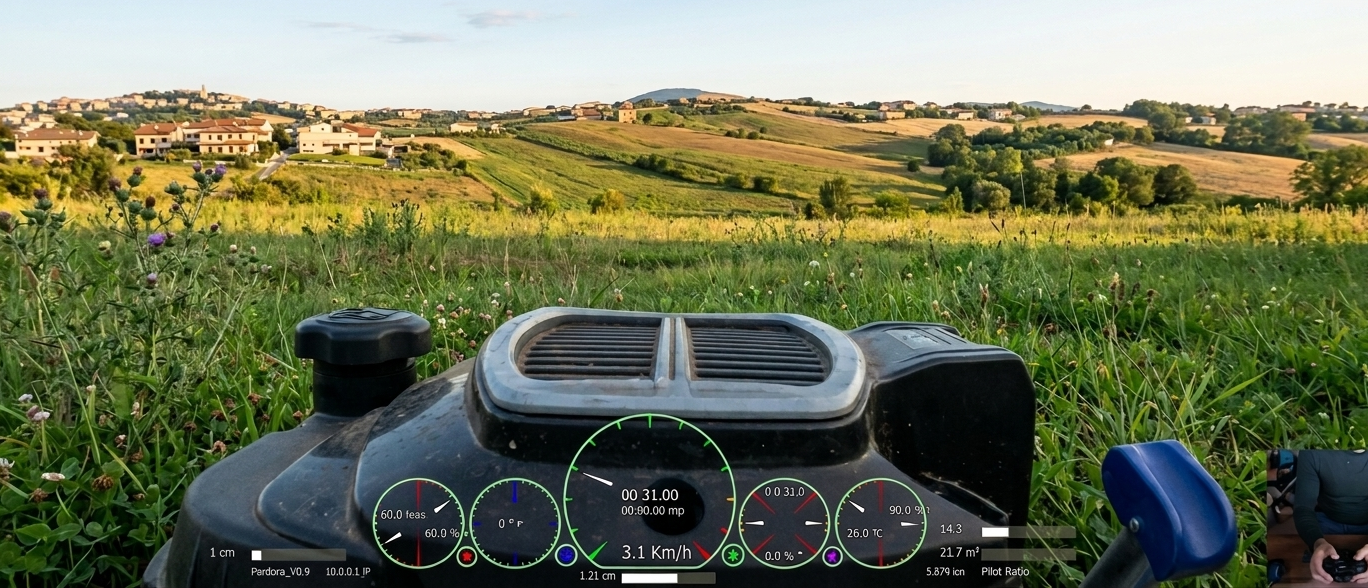

Control	PC operator station with live first-person visual feedback.
Safety	Failsafe-first architecture and supervised operation.
Telemetry	Monitoring and diagnostics-ready workflow.
Architecture	Distributed system: PC + Raspberry Pi + STM32 real-time control.

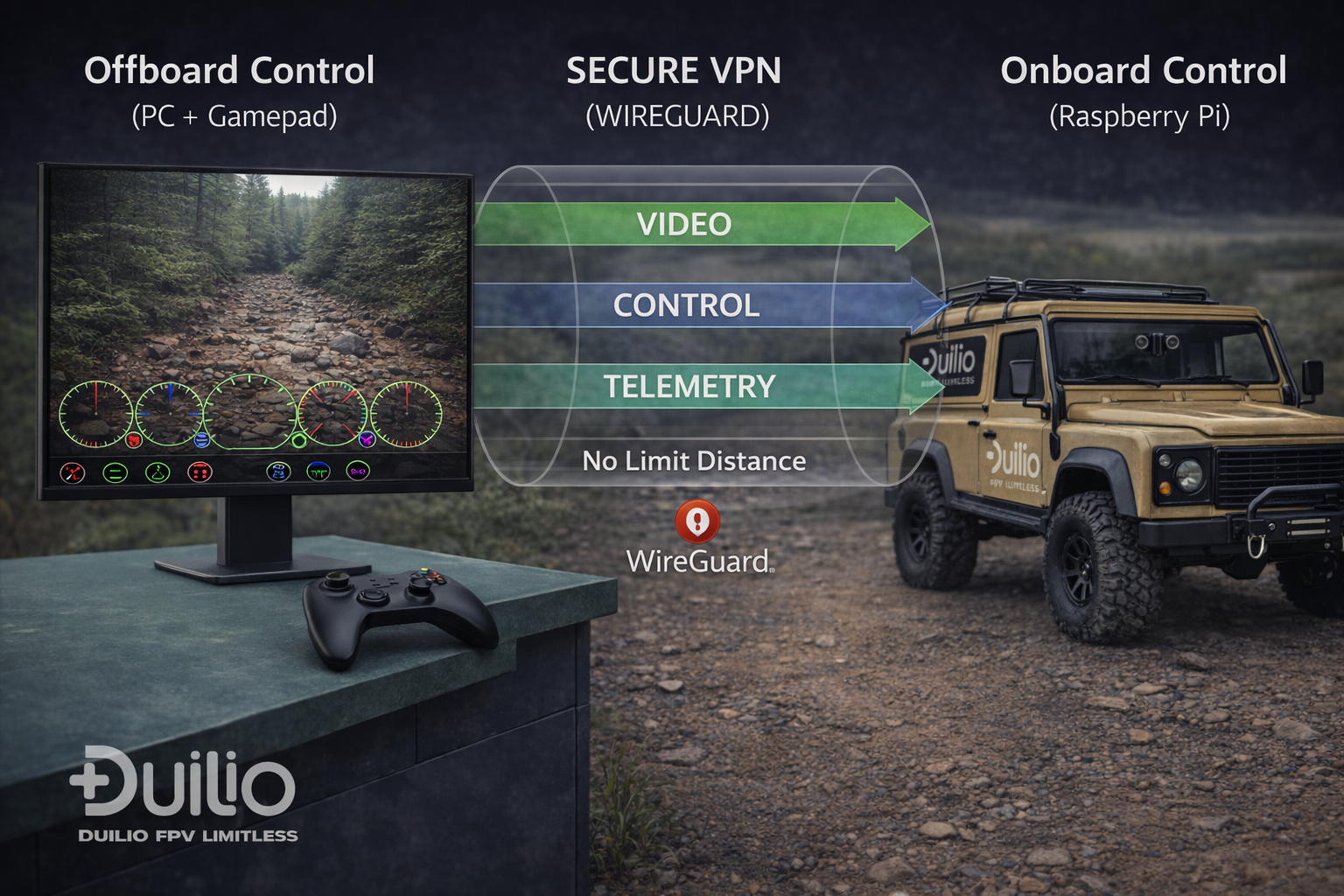

How the system works

Operator commands and first-person video are exchanged over low-latency links. Raspberry Pi handles communication and streaming, while DUILIO F4 executes time-critical motor control.

Low-latency command and video exchange over Wi-Fi or 4G/5G.
PC operator station sends control input and receives live feedback.
Onboard Raspberry Pi manages communication, video, and high-level logic.
DUILIO F4 handles precise motor control and safety-critical functions.

Key capabilities

Basic deployment (Raspberry Pi based)

Ultra-low-latency audio/video streaming.
Full HD H.264 with on-the-fly configuration.
Secure connectivity via WireGuard VPN.
Telemetry and remote configuration via Telegram.
GPS support, stopwatch, temperature data, multi-camera/audio.
GPIO control for lights, horn, starter and shutdown.

Advanced capabilities with DUILIO F4

Tachometer, battery data, instant power, slope and trip data.
Local 4-channel RC control and integrated failsafe systems.
7-43V input for Raspberry Pi and auxiliaries.
Precision RC outputs and PWM/DIR outputs for power drivers.
4WD / 6WD operating modes and speed limiter.
RS-485 expansion for additional boards and I/O.

Ecosystem repositories

Onboard

Machine-side software for communication, control, sensors and hardware integration.

duilio_fpv_onboard

Offboard

PC-side software for user interface, remote control workflow and telemetry visualization.

duilio_fpv_offboard

Hardware reference

Reference motion-control hardware platform optimized for this ecosystem.

duilio_f4

Project goal and status

Duilio FPV started from a real requirement: enabling remote machine operation for a person with physical disability. The project is in active development, focused on reliability, failsafe validation, telemetry quality and real-world deployment hardening.

Main GitHub repo DUILIO F4 hardware

FAQ

Is DUILIO FPV free?

Yes. DUILIO FPV is open source under GPL-3.0 and can be used for hobby, play and development.

Can it run without DUILIO F4?

Yes. A baseline setup can run on Raspberry Pi. DUILIO F4 is for advanced safety and machine-level features.

What networks are supported?

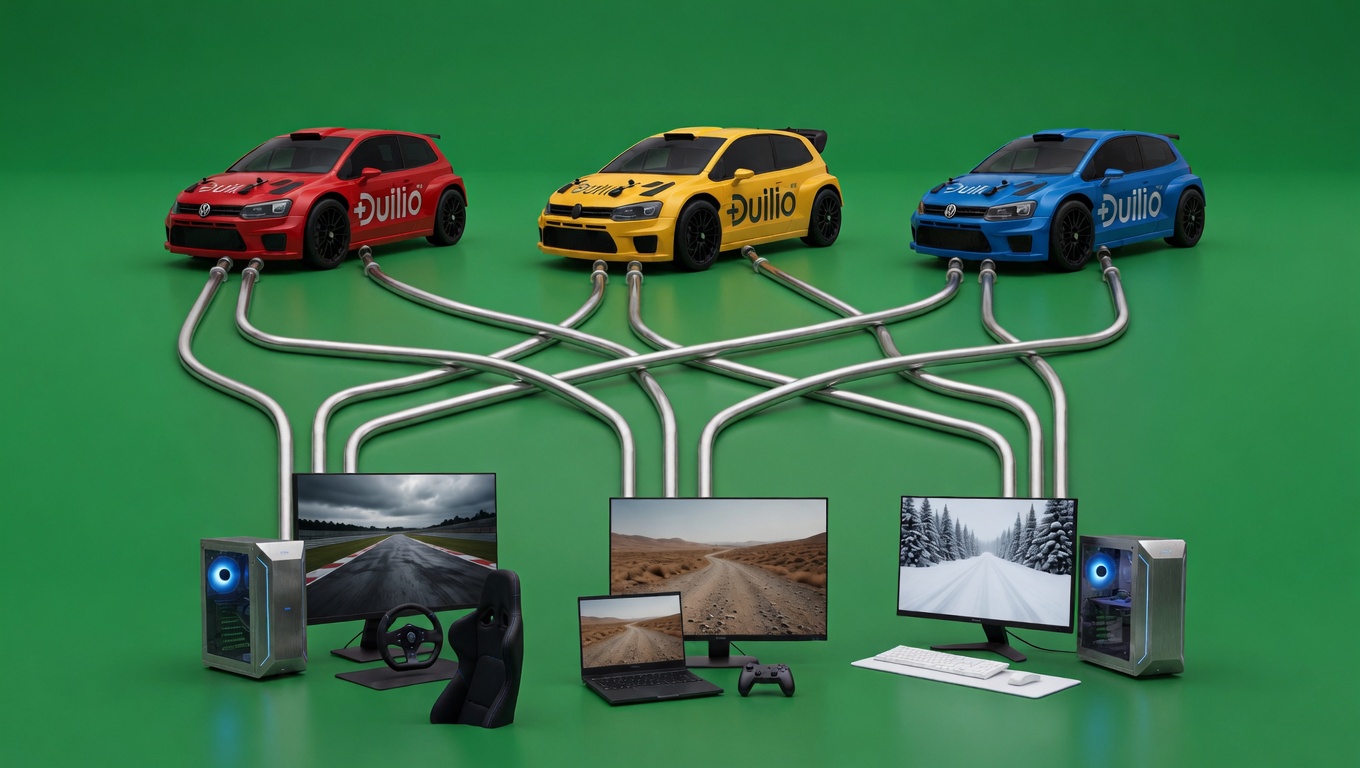

Wi-Fi and 4G/5G are supported, typically secured through WireGuard VPN.

Keep exploring

Home DUILIO F4 Manta Airfoil Tools Shop

Last updated: 20 Apr 2026
